Passive cooler AMD SoC
cat. num.: F5000-C022F5000-C022
For D3714-R
max 10W TDP
Manufacturer
Links
Availabillity:
in stock
Inquiry
Description

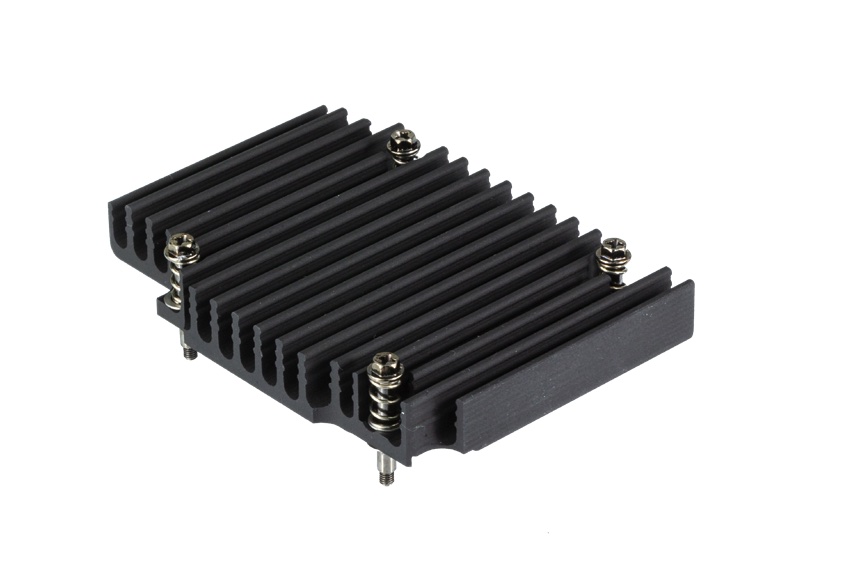

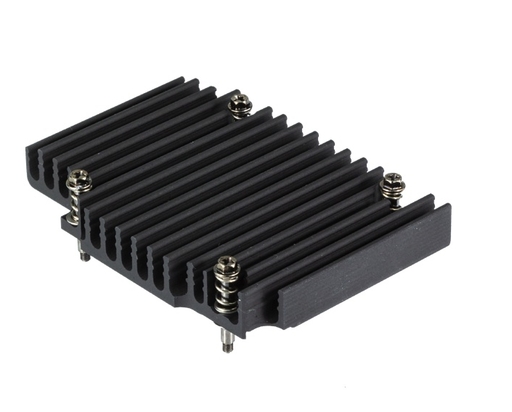

Fanless Heatsink Kit for Mini-STX Motherboard D3714-R
- Designed for the AMD Ryzen™ Embedded R1000 processor series
- Full aluminium
- Max. 10 W TDP
- Spring-loaded mounting screws for specified downforce
- Weight: ~ 200g (cooler) + 21 g (backplate)
TECHNICAL INFORMATION
- RECOMMENDED MOUNTING SCREW TORQUE: max. 0.8 Nm
- Metal backplate, provides 4 mounting threads for heatsink
- BACKPLATE MOUNTING HOLES: M3; hole spacing = 61.5 mm x 61.5 mm
- SUPPORTED MAINBOARDS: D3714-R
