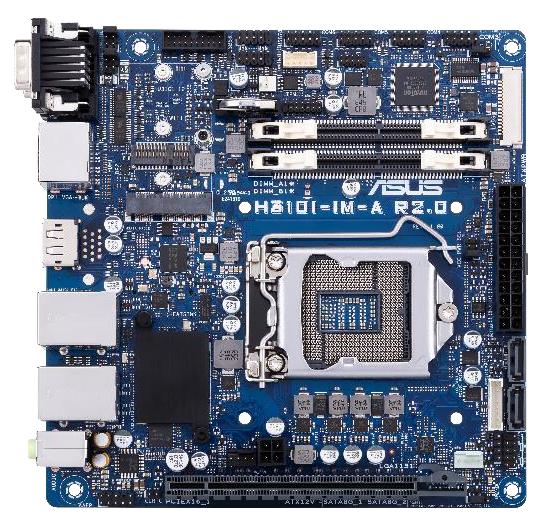

ASUS H310I-IM-A
cat. num.: H310I-IM-A
Description
Chipset:
- Intel® H310
Processor:
- 8th Generation Intel® Core™ i7/i5/i3/Pentium/Celeron
- TDP 65W
Memory:
- DDR4 2133/2400MHz
-
2x SO-DIMM socket, max. 32GB memory
Product features:
- 2x COM (RS-232/422/485) + 4x COM header (RS232)
- Supports up to 2 display configuration by multiple interface: 2x DP/HDMI/LVDS
- 7-year longevity supply
- Wide temperature range endurance: 0~60°C
Parameters
| Market: | Industrial |
| Form Factor: | mini-ITX |
| Power Input: | AT/ATX mode |
| Processor: | 8th Generation Intel® Core™ i7/i5/i3/Pentium/Celeron |
| PCIe/mPCIe/PCI: | 1x PCIe x16, 1x M.2 2230, 1x M.2 2242/2260/2280, 1x Mini PCIe |
| LAN/USB/COM: | 2x RJ45, 4x USB 3.1 Gen1 + header support (2x USB 3.1 Gen1+4x USB 2.0), 2x COM + 4x COM headers |
| Interface: | 2x SATA 6Gb/s |
| Size: | 170 x 170 mm |
| Operating temperature: | 0 ~ +60°C |
| Memory type: | 2x DDR4-2400/2133 |
| DDR: | SO-DIMM |
