ASUS Q470EI-IM-A
cat. num.: Q470EI-IM-A

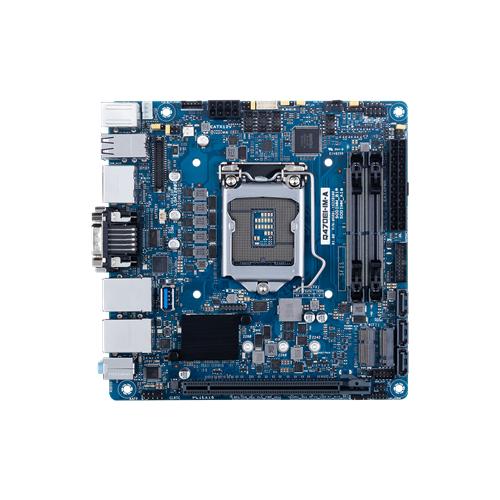

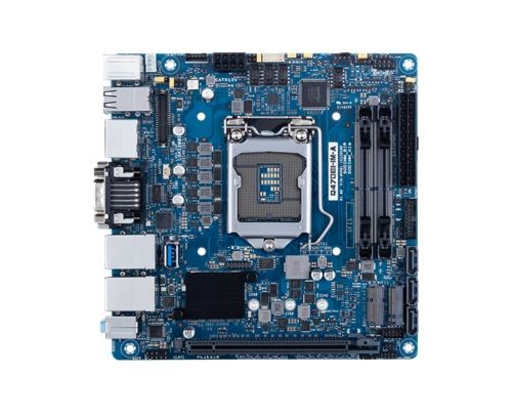

ASUS Q470EI-IM-A is mITX industrial motherboard. This mini ITX is with CPU from Intel 10. Generation, Q470E Usage: Digital security and factory automation
Mini-ITX, Intel Q470E
LGA1200 10th gen.
DDR4 2933/2666
Wide temp 0~60°C
Manufacturer
Links
Availabillity:
on request
Inquiry
Description
Chipset:
- Intel® Q470E
Processor:
- 10th Generation Intel® Core™ i9/i7/i5/i3/Pentium/Celeron (14nm)
- LGA1200 Socket
- max TDP 65W
Memory:
- DDR4 2933/2666/2400/2133 MHz
-
2x SO-DIMM socket, max. 64GB memory
Product features:
- 2x LAN - Intel® I210AT, Intel® I219LM
- Supports up to 3 display configuration by multiple interface: 2x DP 1.4 / 1x DVI-D / 1x eDP or LVDS (switched by BIOS)
- 1x COM (RS-232/422/485) + 4x COM header (1x RS232/422/485, 3x RS232)
- 7-year longevity supply
- Wide temperature range endurance: 0~60°C
Parameters
| Market: | Industrial |
| Form Factor: | mini-ITX |
| Power Input: | ATX / 12V DC-in |
| Processor: | 10th Generation Intel® Core™ i9/i7/i5/i3/Pentium/Celeron |
| PCIe/mPCIe/PCI: | 1x PCIe x16, 1x M.2 2230 (E key), 1x M.2 2242/2260/2280 (M key) |
| LAN/USB/COM: | 2x RJ45, 2x USB 3.2 Gen2 Type A, 1x USB 3.2 Gen2 Type C, 1x USB 3.2 Gen1, 4x USB2.0, 2x USB header (2x USB 3.2 Gen1 / 2x USB 2.0), 1x COM + 4x COM headers, 2x PS/2 |
| Interface: | 3x SATA 6Gb/s |
| Size: | 170 x 170 mm |
| Operating temperature: | 0 ~ +60°C |
| Memory type: | 2x DDR4-2933/2666/2400/2133 |
| DDR: | SO-DIMM |
