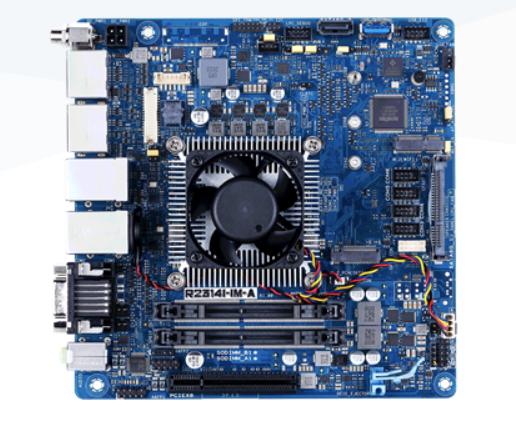

ASUS R2314I-IM-A
cat. num.: R2314I-IM-A New product
ASUS R2314I-IM-A is industrial mini-ITX motherboard. This mITX motherboard with AMD CPU R2314 is used in Automation PC, Embedded AI, Medical equipment
Mini-ITX, AMD RyzenTM Embedded R2314
2x DDR4 2667 up to 32 GB, ECC support
Operating temperature: 0~60°C
Manufacturer
Links
Availabillity:
on request
Inquiry
Description
Processor:
- AMD RyzenTM Embedded R2314
Memory:
- DDR4 2667 MHz
- 2x SO-DIMM socket, max. 32GB memory
Product features:
- 2x LAN - 2 x Realtek® 8111H, support WOL/PXE
- Supports up to 4 display configuration by multiple interface: 4x DP (up to 4K resolution)
- 2x COM (RS-232/422/485) + 4x COM header
- 1x PCIe 3.0 x8 Slot
- 1x M.2 Socket 1 with E key, type 2230 (PCle x1, USB 2.0), 1x M.2 Socket 3 with M key, type 2242/2260/2280 (PCIe x2, SATA)
- Up to 7-year longevity supply
Parameters
| Market: | Industrial |
| Form Factor: | mini-ITX |
| Power Input: | DC-in (ATX and AT mode supported) 12V ~ 24V |
| Processor: | AMD RyzenTM Embedded R2314 |
| PCIe/mPCIe/PCI: | 1x PCIe 3.0 x8 Slot, 1x M.2 Socket 1 with E key, type 2230 (PCle x1, USB 2.0), 1x M.2 Socket 3 with M key, type 2242/2260/2280 (PCIe x2, SATA) |
| LAN/USB/COM: | 2x RJ-45, 2x USB 3.2 Gen2 Type A, 2x USB2.0, 4x USB header (2x USB 3.2 Gen1 and 2x USB 2.0), 2x COM + 4x COM headers |
| Interface: | 1x SATA 6Gb/s Gen 3.0 |
| Size: | 170 x 170 mm |
| Operating temperature: | 0 ~ +60°C |
| Memory type: | 2x DDR4-2667 |
| DDR: | SO-DIMM |
