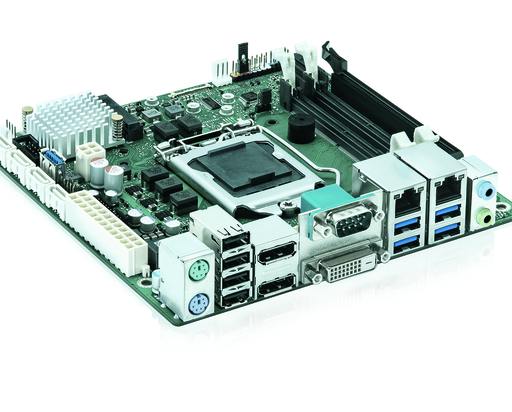

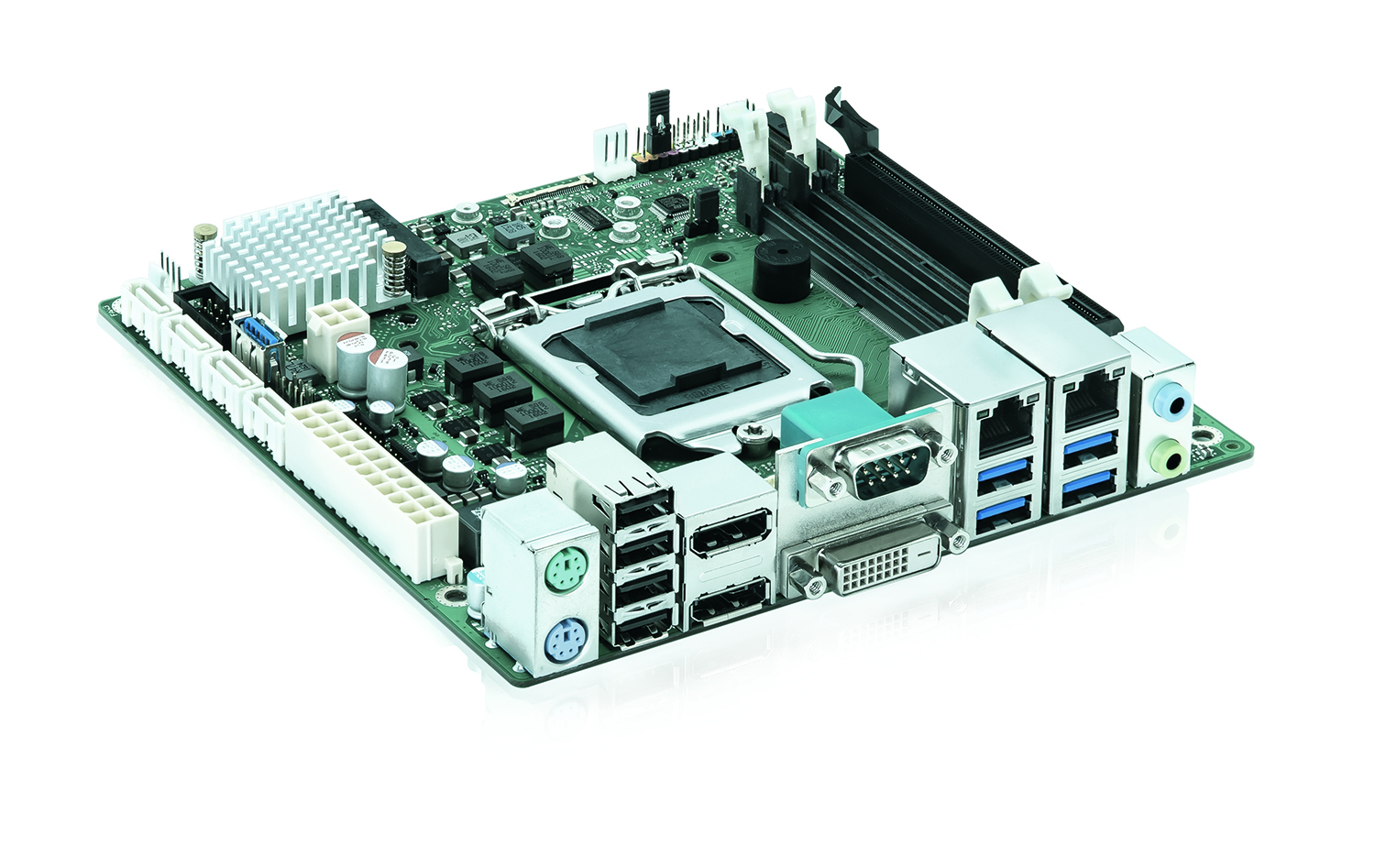

D3433-S2 mITX Kontron
cat. num.: S26361-F5120-V146
Description
Memory:
- DDR4 2133 SDRAM (SO-UDIMM)
- DDR4 2400 SDRAM (SO-UDIMM)
Product Features:
- Intel® iAMT 11.0 / vPro 2015
- Intel® HD Graphics (integrated in processor e.g. HD510/530)
- DVI-D, Dual DP V1.2, eDP and Dual Channel LVDS support
- PCI Express x16 Gen3 and Mini-PCI Express onboard
- 8 Bit GPIO & multichannel Audio onboard
- mSATA (SATA III) socket support (for Embedded OS)
- Onboard support for M.2 SSD (PCIe or SATA modules)
- USB 2.0/3.0 and USB socket (stick/dongle USB3.0) onboard
- 2 x Intel GbE LAN onboard (incl. teaming support)
- Infineon TPM V2.0 onboard
- Dual Power Supply (ATX compliant & 12V only)
- BIOS-POST/-Boot & OS – HW Watchdog onboard
Parameters
| Market: | Industrial mainboard |
| Form Factor: | Mini ITX |
| Power Input: | ATX- 24 Pin / ATX- 20 Pin or 12V only Power Supply required; Support for Soft-Off Power Supplies; 3.3V Auxiliary Supply Voltage on PCIe Slot (Wake-Up Function) |
| Processor: | Intel® Core™ i7 / i5 / i3 – (6th+7th generation) processor series Intel® Pentium® / Intel® Celeron® – (6th+7th generation) processor series Socket LGA1151, max. 65W TDP |
| LAN/USB/COM: | Intel i219LM & i210AT with 10/100/1000 MBit/s, iAMT 11 / vPro Support, Wake-on-LAN (WoL) by interesting Packets, Link Status Change and Magic Packet™, PXE Support, BIOS MAC Address Display, Teaming Support |
| Operating temperature: | 0-60 °C |
| Memory type: | DDR4 |
| DDR: | SO-DIMM |
