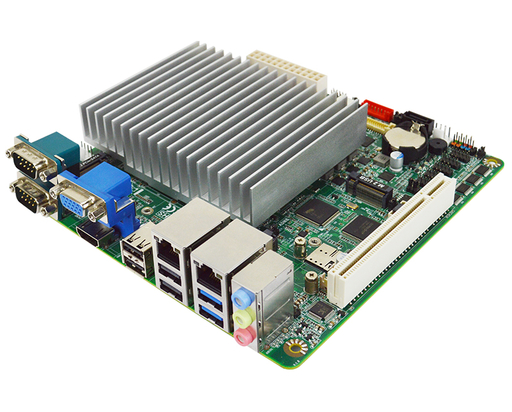

JMTX-ADN8
cat. num.: JMTX-ADN8
Description
Processor:
- Intel® Processor N97 - Alder Lake N
Model:
- JMTX-ADN8-N97000
- JMTX-ADN8-N97002 (TPM 2.0)
- JMTX-ADN8-N97004 (eMMC 64GB)
- JMTX-ADN8-N97008 (TPM 2.0, eMMC64GB)
Memory:
- 1x DDR5 4800MHz DRAM SO-DIMM up to 32GB
Product features:
- 2x RS232/422/485 (COM1 support 5V/12V selectable), 2x USB3.2 Gen1, 7x USB2.0 (3x by header)
- 2x 1GbE
- 1x M.2 2242/2280 M-key, 1x M.2 2230 E-key, 1x M.2 3042/3052 B-key, 1x SATAIII
- Three Independent Display: 1x HDMI 2.0b, 1x VGA, 1x LVDS/eDP
- Support Four Displays
- 1x PCI
- ATX Power (24 pin header)
- support TPM2.0 (option)
Usage:
- Industrial Automation
Parameters
| Market: | Industrial |
| Form Factor: | mITX |
| Power Input: | ATX Power (24 pin header) |
| Processor: | Intel® Processor N97 - Alder Lake N |
| PCIe/mPCIe/PCI: | 1x PCI |
| LAN/USB/COM: | 2x RS232/422/485 (COM1 support 5V/12V selectable), 2x USB3.2 Gen1, 7x USB2.0 (3x by header) |
| Video input: | Three Independent Display: 1x HDMI 2.0b, 1x VGA, 1x LVDS/eDP |
| Interface: | 1x M.2 2242/2280 M-key, 1x M.2 2230 E-key, 1x M.2 3042/3052 B-key, 1x SATAIII |
| Size: | 170 x 170 mm |
| Operating temperature: | -20~60°C |
| Memory type: | 1x 4800MHz DRAM SO-DIMM up to 32GB |
| DDR: | DDR5 |
