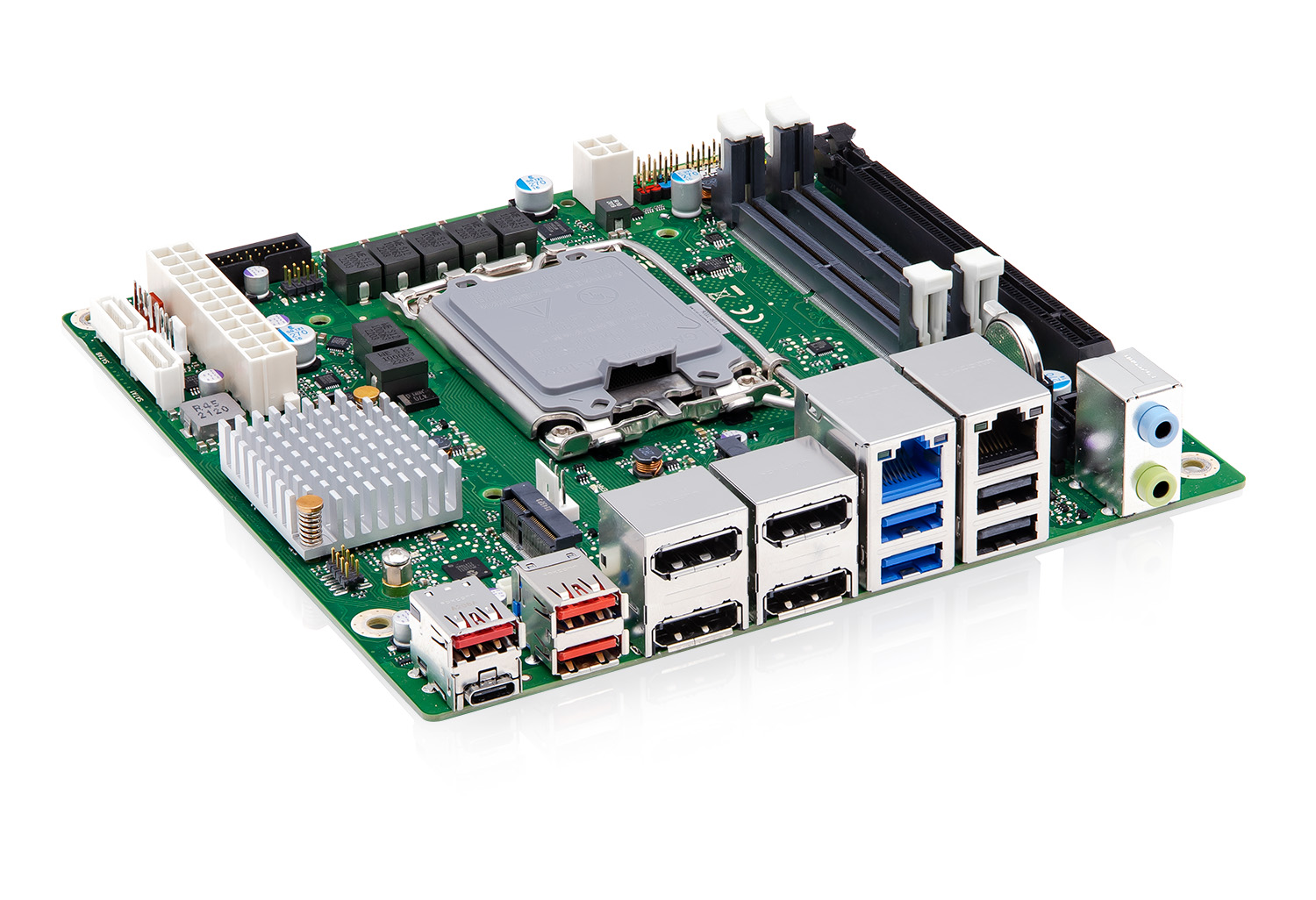

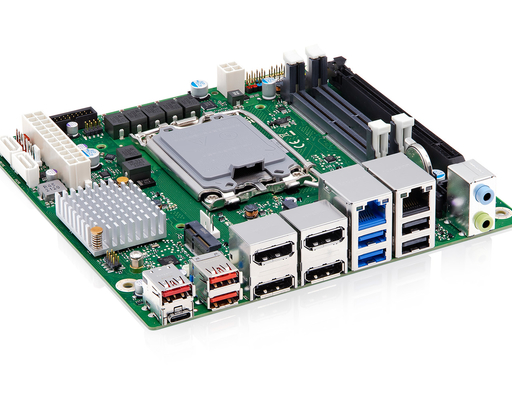

K3833-Q mITX
cat. num.: F5120-V196 New product
mini-ITX, Intel Q670E Chipset
LGA1700 12/13th Gen Core i3 / i5 / i7 / i9 Processors
Latest DDR5 memory technology for best-in-class system performance
Industrial Series
Manufacturer
Links
Availabillity:
on request
Inquiry
Description
Processor:
- Intel® CoreTM i9/i7/i5/i3 (12/13th Gen) processor series
- Intel® Pentium®/Intel® Celeron® processor series
- Socket LGA1700, max. 65 W TDP
Memory:
- 2 SODIMM Sockets DDR5-4800, max. 64 GByte, Dual Channel unbuffered, non-ECC
Product Features:
- cTDP – Easy & flexible reduction of CPU TDP
- Supporting Intel® iAMT features and Intel® Time Coordinated Computing (TCC)
- PCI Express® x16 (Gen5)
- 1x Intel® GbE LAN, 1x 2.5GbE incl. Teaming and TSN
- Intel® UHD Graphics 7xx driven by Xe Architecture; 4x DisplayPort V1.4a @4k; 1x eDP V1.4b
- Intel® High Definition 5.1 Audio; Intel® integrated TPM V2.0
- 8 Bit GPIO; 1x COM port
- 4x USB 3.2 Gen 2, 4x USB 3.2 Gen1, 2x USB 2.0
- 2x SATA 6G incl. RAID support
- 1x M.2 2242 (Key-M, PCIe/NVME SSD modules)
- 1x M.2 2230 (Key-E, WLAN/Bluetooth modules, incl. CNVi support)
- BIOS-POST/-Boot & OS – HW Watchdog onboard
Parameters
| Market: | Industrial mainboard |
| Form Factor: | miniITX |
| Processor: | Intel® CoreTM i9/i7/i5/i3 (12/13th Gen), processor series Intel® Pentium®/Intel® Celeron® processor series, Socket LGA1700, max. 65 W TDP |
| PCIe/mPCIe/PCI: | PCI Express® x16 (Gen5), 1x M.2 2242 (Key-M, PCIe/NVME SSD modules), 1x M.2 2230 (Key-E, WLAN/Bluetooth modules, incl. CNVi support) |
| LAN/USB/COM: | 4x USB 3.2 Gen 2, 4x USB 3.2 Gen1, 2x USB 2.0, 8 Bit GPIO; 1x COM port |
| Interface: | 2x SATA 6G incl. RAID support |
| Size: | 170 x 170 mm |
| Operating temperature: | 0-60 °C |
| Memory type: | 2x DDR5 4800 MHz, up to 64Gbyte, non-ECC |
| DDR: | SO-DIMM |
