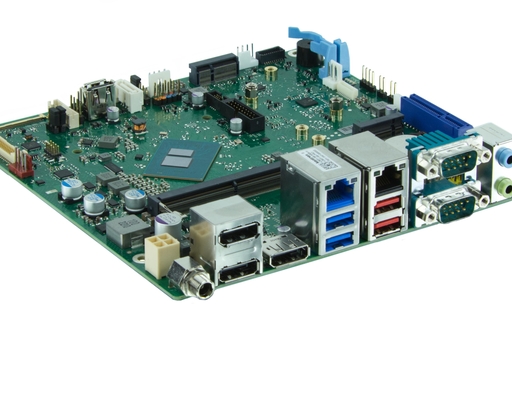

K3931-N1 mITX Kontron
cat. num.: F5120-V211 New product
K3931-N1
mini-ITX, Alder Lake N50
Intel® Processor N50 (2C/6W) SoC
DDR5-4800
Industrial Series
Manufacturer
Links
Availabillity:
on request
Inquiry
Description
Processor:
- Intel Alder Lake N SoC Series
- N1: Intel Processor N50 (2C/6W) SoC
Graphics:
- Intel® UHD Graphics driven by Intel® Xe with up to 32 execution units (EUs)
- Up to 3x DPP V1.4a (up to 4K resolution)
- 1x Embedded DP (eDP V1.4b up to 4K resolution)
- 1x Dual-Channel 24bit LVDS
Memory:
- DDR5 4800 SDRAM
- 1x SO DIMM socket, up to 32 GByte memory, non-ECC
Product Features:
- 8 Bit GPIO & HD Audio onboard
- 3x USB 2.0, 4x USB 3.2 Gen1, 4x USB 3.2 Gen2
- 2x SATA III
- 1x Realtek GbE LAN, 1x 2,5GbE incl. Teaming
- 1x SATA 6G
- 1x M.2 2230/42/80 (Key-M, PCIe x1 Gen3/NVMe SSD modules)
- 1x M.2 2242/80 (Key-B, PCIe x1 Gen3/SATA SSD modules)
- 1x M.2 2230 (Key-E, WLAN/Bluetooth modules, CNVi support only)
- Intel® integrated iTPM V2.0
- WideRange internal/external DC Input (8V - 36V)
- HW Watchdog onboard
- 4x RS-232 support onboard (1x incl. RS 485/422) + 1x ccTalk
- WideRange internal/external DC input (8V - 34V)
Usage:
- Casino Gaming, Medical Displays, Industrial PCs,...
- Designed for 24/7 use, with enhanced temperature range, up to 60°C
Parameters
| Market: | Industrial mainboard |
| Form Factor: | miniITX |
| Power Input: | 8-34V |
| Processor: | Intel® Alder Lake N SoC Series, N1: Intel® Processor N50 (2C/6W) SoC |
| PCIe/mPCIe/PCI: | 1x PCIe x4 (1 lane, Gen3, open slot) |
| LAN/USB/COM: | 3x USB 2.0, 4x USB 3.2 Gen1, 4x USB 3.2 Gen2, 1x Realtek GbE LAN, 1x 2,5GbE |
| Interface: | 1x SATA 6G 1x M.2 2230/42/80 (Key-M, PCIe x1 Gen3/NVMe SSD modules) 1x M.2 2242/80 (Key-B, PCIe x1 Gen3/SATA SSD modules) 1x M.2 2230 (Key-E, WLAN/Bluetooth modules, CNVi support only) |
| Size: | 170x170mm |
| Operating temperature: | 0-60 °C |
| Memory type: | DDR5 4800MHz |
| DDR: | SO-DIMM |
