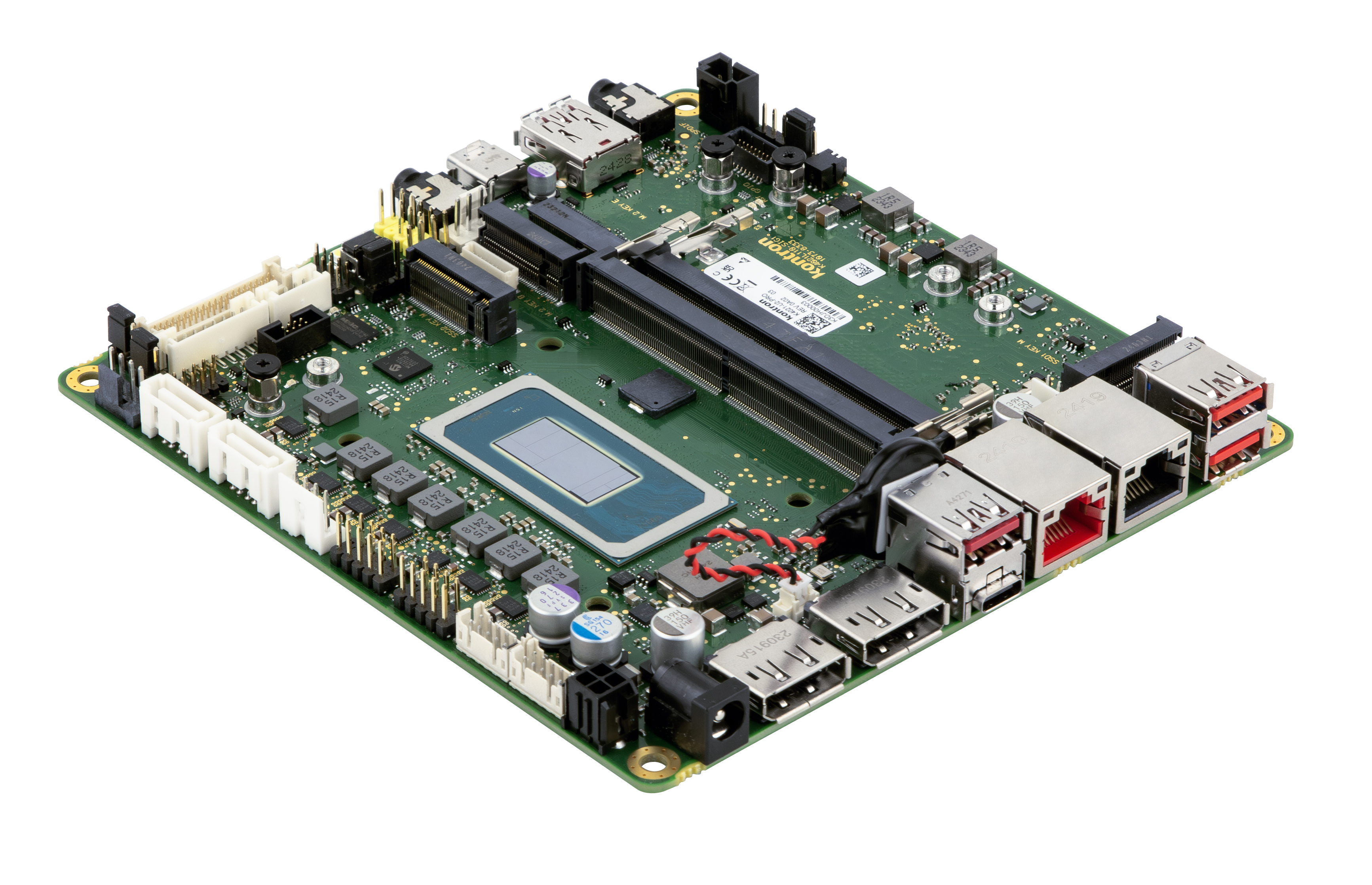

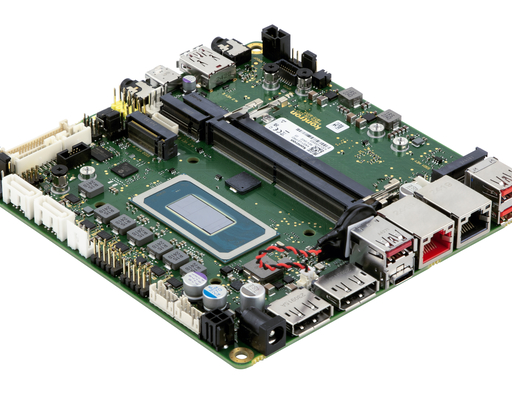

K4021-U2 mSTX Kontron
cat. num.: F5120-V252 New product
K4021-U2 is industrial motherboard produced in Germany from Kontron. This mSTX motherboard with CPU Intel Meteor Lake U is used in Kiosks, Digital Signage, HMI, Ai
mini-STX, Meteor Lake U
Intel® Core Ultra Processor
DDR5-5600
Industrial Series
Manufacturer
Availabillity:
on request
Inquiry
Description
Processor:
- Intel Meteor Lake
- Intel. Core™ Ultra 5 125U, TDP 15W
Graphics:
- Intel. Graphics driven by Intel. Xe with up to 8 Xe-cores
- Up to 3x DPP V1.4a ( max. 8K resolution)
- 1x Embedded DP (eDP V1.4b, max. 5K resolution)
- 1x Dual-Channel 24bit LVDS
Memory:
- DDR5 5600 SDRAM
- 2x SO DIMM socket, s max. 96 GByte memory, non-ECC
Product Features:
- 8 Bit GPIO & HD Audio onboard
- 4x USB 3.2 Gen2, 1x USB Type-C with DP Alt mode, 1x USB Type-C with Thunderbolt 4 / USB4 Support
- 1x Realtek GbE LAN, 1x 5GbE iAMT
- 2x SATA 6G
- 1x M.2 2230/42/80 (Key-M, PCIe x4 Gen4), 1x M.2 2230/42 (Key-M, PCIe x4 Gen4)
- 1x M.2 2242 (Key-B, PCIe, USB 2)
- 1x M.2 2230 (Key-E, WLAN/Bluetooth modules, CNVi, USB)
- Intel® integrated iTPM V2.0
- internal/external DC input (9-24V), PowerDelivery Sink Mode (20V DC-In via USB-C)
- HW Watchdog onboard
- 2x RS-232 support onboard
Usage:
- Kiosks, Digital Signage, HMI, Ai
- Designed for 24/7 use, with enhanced temperature range, up to 60°C
Parameters
| Market: | Industrial mainboard |
| Form Factor: | miniSTX |
| Power Input: | internal/external DC input (9-24V) PowerDelivery Sink Mode (20V DC-In via USB-C) |
| Processor: | Intel® Meteor Lake, Core Ultra 5 |
| LAN/USB/COM: | 4x USB 3.2 Gen2, 1x USB Type-C with DP Alt mode, 1x USB Type-C with Thunderbolt 4 / USB4 Support |
| Interface: | 2x SATA 6G, 2x M.2 2230/42/80 (Key-M, PCIe x4 Gen4), 1x M.2 2242 (Key-B, PCIe, USB 2), 1x M.2 2230 (Key-E, WLAN/Bluetooth modules, CNVi , USB2) |
| Size: | 140x148 mm |
| Operating temperature: | 0-60 °C |
| Memory type: | DDR5 5600MHz |
| DDR: | SO-DIMM |
