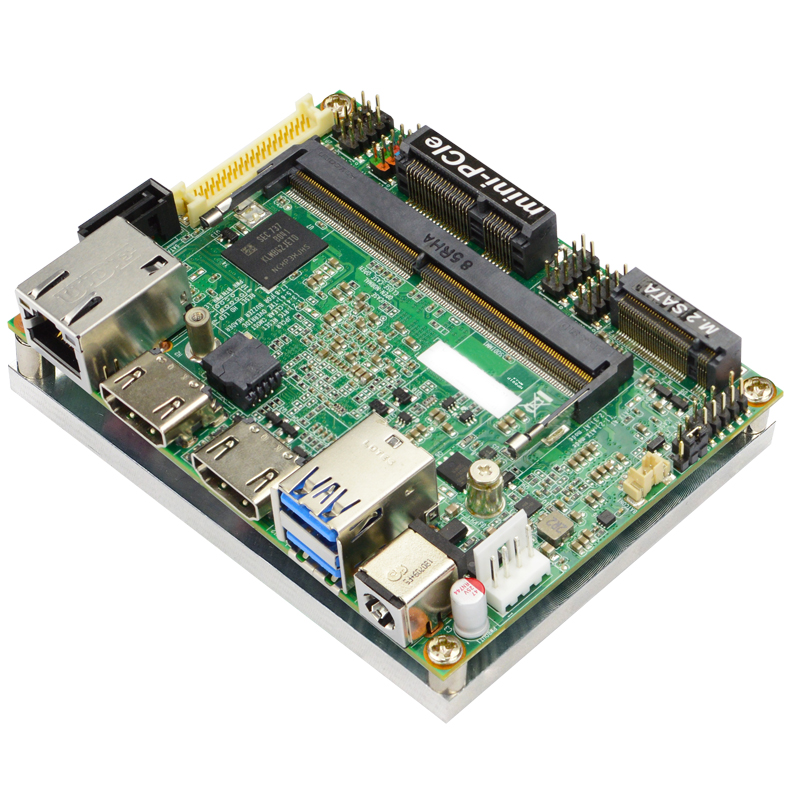

JNP891P-4125 Series
cat. num.: JNP891P-4125S
Intel Gemini Lake-R SoC Processor
1x DDR4 2400MHz SO-DIMM up to 8GB
Operating temperature: 0~60°C
Manufacturer
Availabillity:
on request
Inquiry
Description
Processor system:
- JNP891P-4125
- JNP891P32-4125 (W/32GB eMMC)
Memory:
- 1x DDR4 2400MHz SO-DIMM up to 8GB
Product features:
- 1x SATAIII (6GB/s)
- 1x M.2 M-key (2242 W/SATA interface)
- 32GB eMMC on board (JNP891P32-4125)
- 1x Mini-PCIe (full size)
- 2x HDMI 2.0 (Max res.: 4096x2160@60Hz)
- 1x eDP (Max res.: 4096x2304@60Hz)
- Support triple displays
- 2x USB2.0
- 3x USB3.0
- 1x COM
Parameters
| Market: | Digital Signage |
| Power Input: | 12V DC-in |
| Processor: | JNP891P-4125 / JNP891P32-4125 (W/32GB eMMC) |
| PCIe/mPCIe/PCI: | 1x Mini-PCIe |
| LAN/USB/COM: | 2x USB2.0, 2x USB3.0, 1x COM, 1x RJ45 |
| Video input: | 2x HDMI 2.0 (Max res.: 4096x2160@60Hz), 1x eDP (Max res.: 4096x2304@60Hz) |
| Interface: | 1x SATAIII, 1x M.2 M-key |
| Size: | 100 x 72 mm |
| Operating temperature: | 0 ~ +60°C |
| Memory type: | SO-DIMM DDR4 2400MHz SDRAM up to 8GB |
