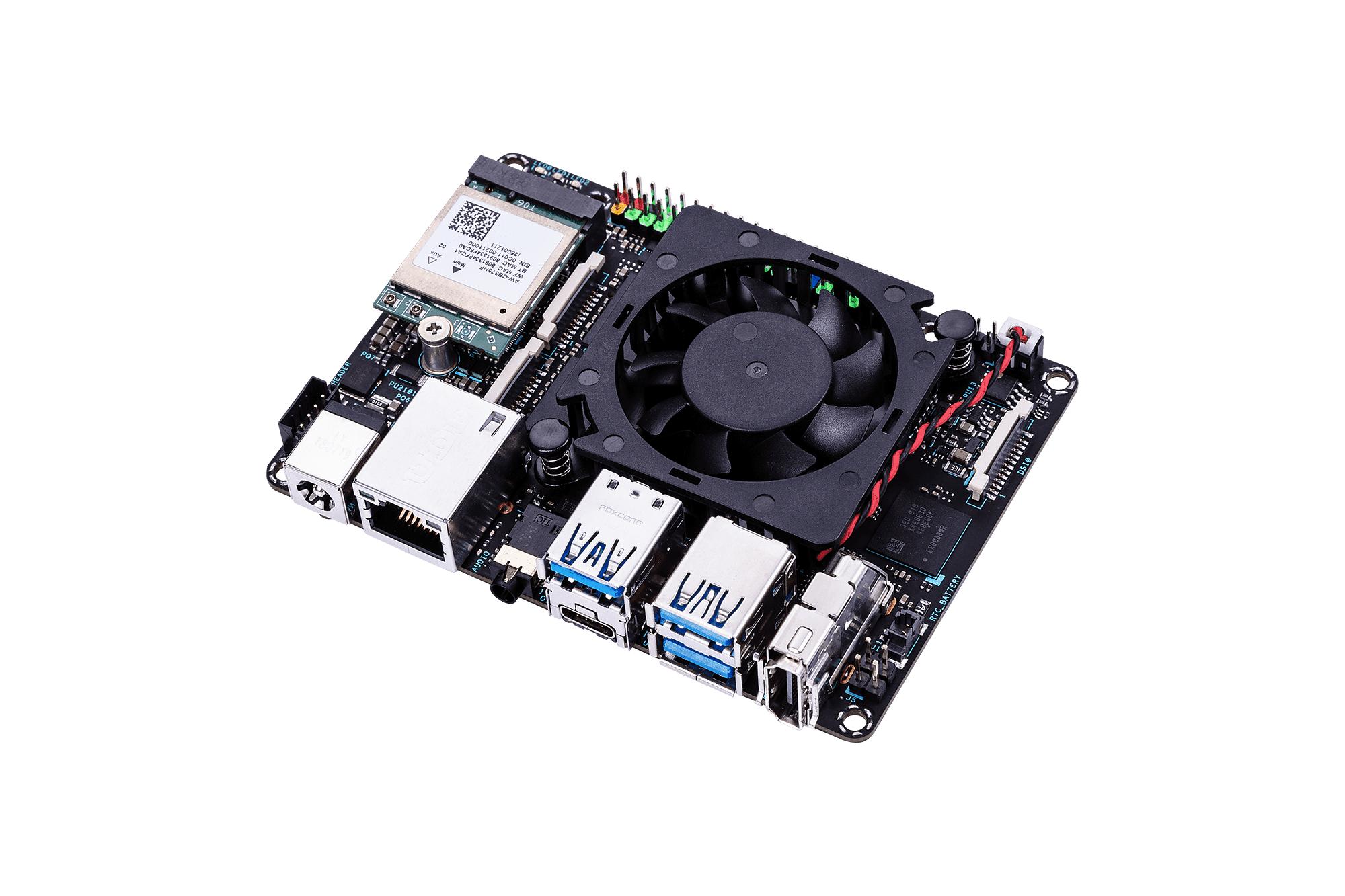

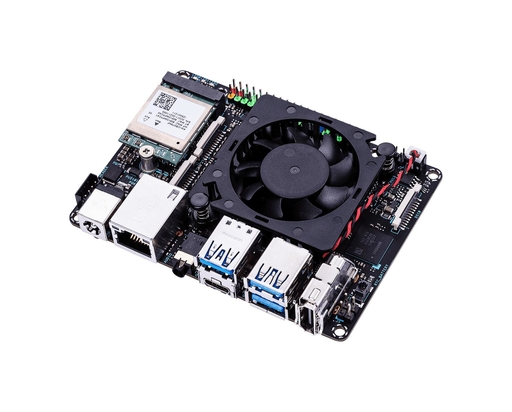

Tinker Edge R

cat. num.: 90ME00M0-M0EAY0
Tinker Edge R
Tinker Edge R
Tinker Edge R
Tinker Edge R
  • Share
    • Facebook
    • Twitter
    • Google+
    • Email
  • compare remove

Rockchip 6-core RK3399Pro
16GB, 4x USB, 3x display
WiFi, BT, mini PCIe
Wide temp 0~60°C

Manufacturer
  • ASUS
Links
  • ASUS web
Availabillity: on request
Inquiry

Description

Chipset:

  • Integrated Rockchip

Processor:

  • Rockchip 6-Core RK3399Pro SoC, TDP 7W
  • Dual-core Arm® Cortex®-A72 @ 1.8GHz
  • Quad-core Arm® Cortex®-A53 @ 1.4GHz
  • Integrated Graphics Processor ARM® Mali™-T860 MP4 GPU @ 800 MHz

Memory:

  • 4GB Dual Channel LPDDR4 (system)
  • 2GB LPDD3 (NPU)
  • 16GB eMMC
  • Micro SD(TF) card slot

Product features:

  • 1x M.2 - WiFi 802.11 a/b/g/n/ac wireless & BT 5.0, 2T2R
  • Realtek RTL8211F-CG GbE LAN
  • 1 x Mini PCIe slot (Full-Length, nano-SIM socket, for 4G/LTE)
  • 3x display support
  • 3x USB 3.2 Gen1, 1x USB 3.2 Gen1 Type-C OTG (DP Alt Mode), 1x HDMI, 1x 40-pin GPIO header, 1x 22pin MIPI CSI-2 (4 lane), 1x 22-pin MIPI CSI-2/DSI (4 lane)
  • 1 x 3.5mm audio jack (with Mic & plug-in detection)
  • OS support - Linux Debian 9 / Android 9
  • 1x 12~19V DC Power Input Jack (5.5/2.5 mm)

Parameters

Market: Digital Signage, IoT
Power Input: DC-in 12-19V
Processor: Rockchip 6-Core RK3399Pro
LAN/USB/COM: 1x RJ45, 4x USB 3.2 (1x Type-C with DP Alt mode)
Interface: 1x Micro SD slot onboard
Size: 100 x 72 mm
Operating temperature: 0 ~ +60°C
Memory type: LPDDR4
