MI24 Series

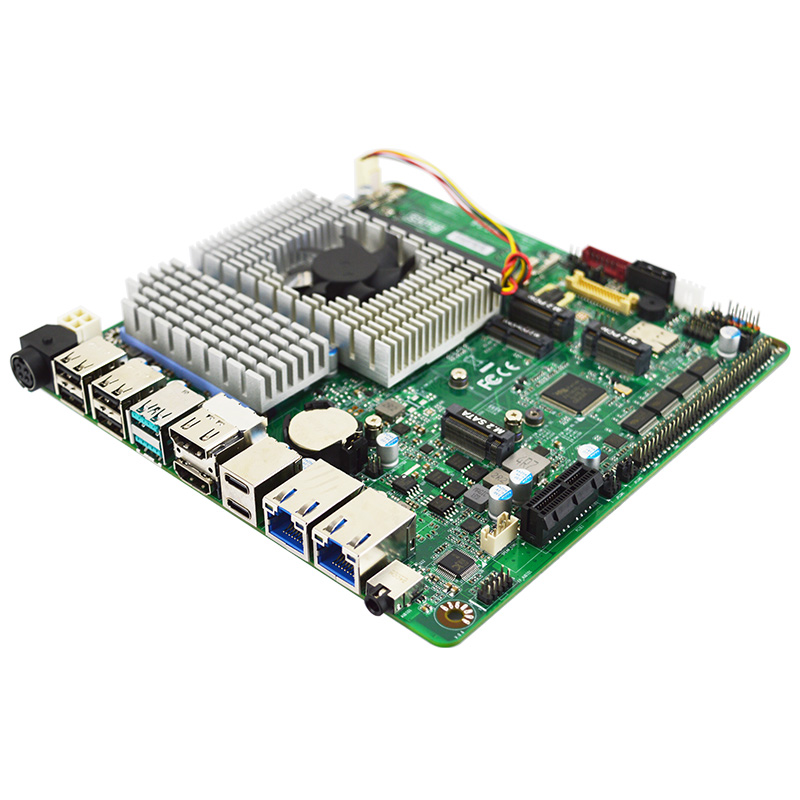

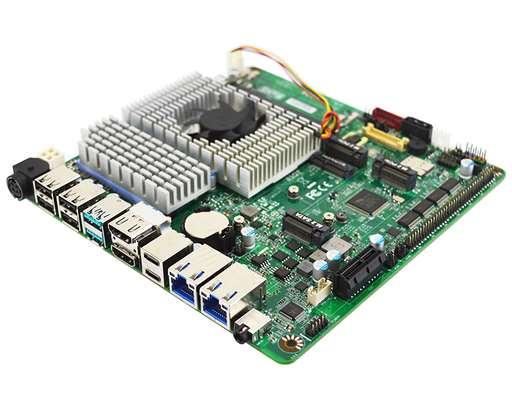

cat. num.: MI24_Series New productMI24 is industrial motherboard produced by Jetway. This Thin mITX motherboard with Intel Alder Lake is used in Digital signage and industrial PCs or Kiosks.
Intel® 13th Raptor Lake-N SoC Processor
2x DDR5 5200MHz SO-DIMM up to 64GB
Operating temp.: 0°C ~ 60°C
Manufacturer
Links
Availabillity:
on request
Inquiry
Description
Processor:
- Intel® 13th Raptor Lake-N SoC Processor
- AMI Flash ROM BIOS
Model:
- MI24-133E0 (Default: i5-1335UE)
- MI24-133E2 (i5-1335UE, onboard TPM2.0)
- MI24-13350 (i5-1335U)
- MI24-13352 (i5-1335U, onboard TPM2.0)
Memory:
- 2x DDR5 5200MHz SO-DIMM up to 64GB
Product features:
- 2x HDMI 2.0b (Max Resolution 4096x2304 @60Hz), 2x DP1.4a (max resolution 4096x2304@60Hz) from Type-C, 1x 24 Bit Dual Channel LVDS/eD (Max Resolution 1920x1200@60Hz)
- Support Quad Displays
- 2x LAN (Intel i225-LM 2.5GbR and Intel i225-V 2.5GbE)
- 2x USB3.2 (Gen.2), 1x USB3.2(Gen.2) Type-C, 7x USB2.0
- 2x M.2 M‐key, 1x M.2 E‐key, 1x M.2 B-key, 1x SATAIII (6Gb/s)
- 6x COM port
- 1x Mic and audio connector
- 1x SIM Card Slot
- 1x GPIO
- 1x SMBUS
- 1x PS/2
- DC Input 12-24V
- Windows 10/11, Linux
Usage:
- Industrial automation
- Kiosks
- Digital signage
- POS
Parameters
Market: | Industrial |
Form Factor: | Thin mini-ITX |
Power Input: | 12-24V DC-in, AT/ATX Supported |
Processor: | Intel® 13th Raptor Lake-N SoC Processor |
PCIe/mPCIe/PCI: | 2x M.2 M-key, 1x M.2 E-key, 1x M.2 E.key, PCIe x1 |
LAN/USB/COM: | 2x RJ45, 2x USB3.2 (Gen.2), 2x USB3.2(Gen.2)Type-C, 2x USB2.0 |
Interface: | 1x SATAIII (6Gb/s) |
Size: | 170 x 170 mm |
Operating temperature: | 0~60°C |
Memory type: | 2x DDR5 5200MHz SO-DIMM up to 64GB |
DDR: | SO-DIMM |
