HPC104GR-HD1900B
cat. num.: HPC104GR-HD1900BHPC104GR-HD1900B

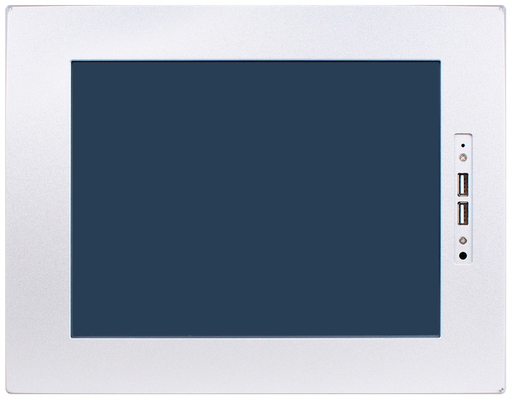

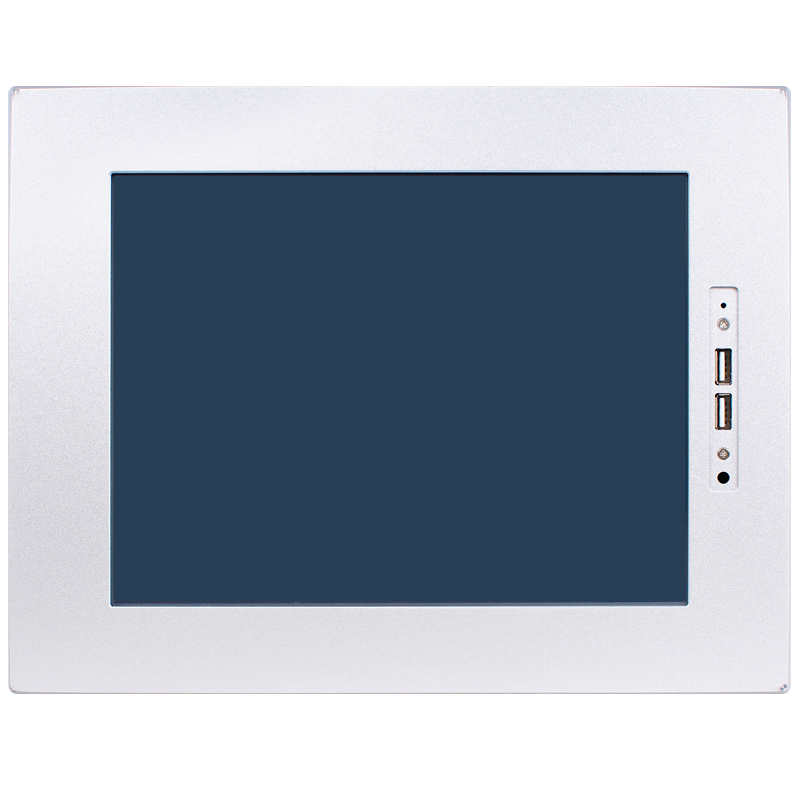

10.4" TFT FanLess Touch Panel Computer
Intel® Bay Trail-D J1900 2.0GHz Quad Cores Processor
Wide temp -10~60°C
Fanless
Manufacturer
Availabillity:
on request
Inquiry
Description
LCD panel:
- 10.4" With LED Backlight, 800x600@60Hz
- Brightness: 400 cd/m2
- Contrast: 400:1
- Viewing angle: 130°/140°
- TOUCHING SCREEN - Active range 211.58x158.75mm
Processor:
- Intel® Bay Trail-D J1900 2.0GHz/QC
Memory:
- 4G 1333MHz DDR3L SAMSUNG DRAM
Product features:
- 1x 2.5" SATA bay
- 1x M.2 (M-key, 2242/2260/2280) slot
- 2x USB3.0, 4x USB2.0
- 2x RS232/422/485
- 1x VGA
- 2x LAN (Gigabit Lan)
- 1x 8bit GPIO
- 1x Locking Jack 9~28V DC input
- 1x Mini PCIe slot for WIFI or 3G/4G
- Size: 290x226x63mm
- AC version: 100~240V AC-DC 60W power adapter or DC version: 12VDC with over current protection fuse
- Power consumption: 25W
Parameters
Market: | Industrial |
Power Input: | AC version: 100~240V AC-DC 60W power adapter / DC version: 12VDC with over current protection fuse |
Processor: | Intel® Bay Trail-D J1900 2.0GHz Quad Cores Processor |
PCIe/mPCIe/PCI: | 1x Mini PCIe slot for WIFI or 3G/4G |
LAN/USB/COM: | 2x USB3.0, 4x USB2.0, 2x RS232/422/485, 2x LAN (Gigabit Lan) |
Video input: | 1x VGA |
Interface: | 1x 2.5" SATA bay 1x M.2 (M-key, 2242/2260/2280) slot |
Size: | 290x226x63mm |
Operating temperature: | -10 ~ +60°C |
Memory type: | 4G 1333MHz DDR3L SAMSUNG DRAM |
