HPC156SC-FP6412
cat. num.: HPC156SC-FP6412
HPC156SC-FP6412

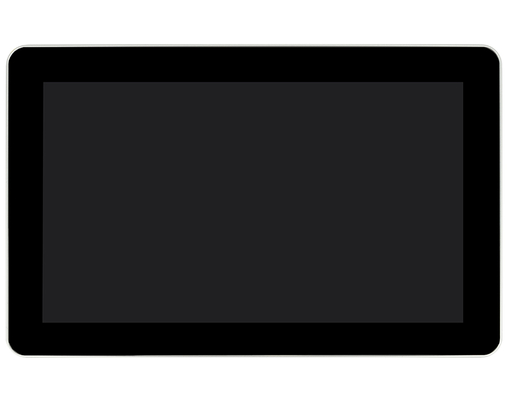

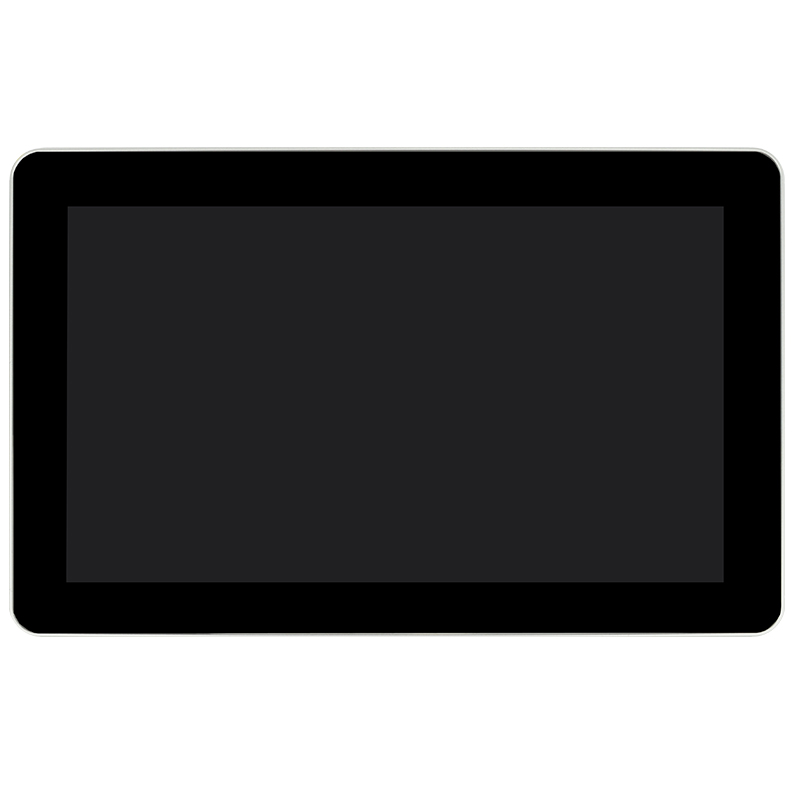

15.6" TFT FanLess Touch Panel Computer
Intel® Elkhart Lake J6412 2.0GHz Quad Cores Processor
Wide temp -10~60°C
Fanless
Manufacturer
Availabillity:
on request
Inquiry
Description
LCD panel:
- 15.6" with LED backlight, 1920x1080@60Hz, 16:9
- Contrast: 800:1
- Viewing angle: 170°/170°
- TOUCHING SCREEN - Active range 387x231mm
Processor:
- Intel® Elkhart Lake J6412 2.0GHz/QC processor
Memory:
- DDR4-3200MHz SO-DIMM up to 32GB
Product features:
- 1x 2.5" SATA bay
- 1x M.2 M key (2242/2280, SATA/NVMe)
- 1x M.2 E key for WIFI/BT module, 1x M.2 B key for 4G/5G Module
- 2x USB3.2(gen1), 4x USB2.0
- 1x 8bit GPIO
- 2x RS232/422/485, 2x RS232
- 1x HDMI 2.0 (Max. res.: 3840x2160@60Hz)
- 1x 9~28V DC input Locking Jack
- Size: 391.0x239.0x59.7mm
- AC version: 100~240V AC-DC 60W power adapter or DC version: 12VDC with over current protection fuse
Parameters
| Market: | Industrial |
| Power Input: | AC version: 100~240V AC-DC 60W power adapter / DC version: 9~24VDC with over current protection fuse |
| Processor: | Intel® Elkhart Lake J6412 2.0GHz/QC processor |
| PCIe/mPCIe/PCI: | 1x M.2 M key (2242/2280, SATA/NVMe), 1x M.2 E key for WIFI/BT module, 1x M.2 B key for 4G/5G Module |
| LAN/USB/COM: | 2x USB3.2(gen1), 4x USB2.0, 2x RS232/422/485, 2x RS232 |
| Video input: | 1x HDMI 2.0 (Max. res.: 3840x2160@60Hz) |
| Size: | 391.0x239.0x59.7mm |
| Operating temperature: | -10 ~ +60°C |
| Memory type: | DDR4-3200MHz up to 32GB |
| DDR: | SO-DIMM |
