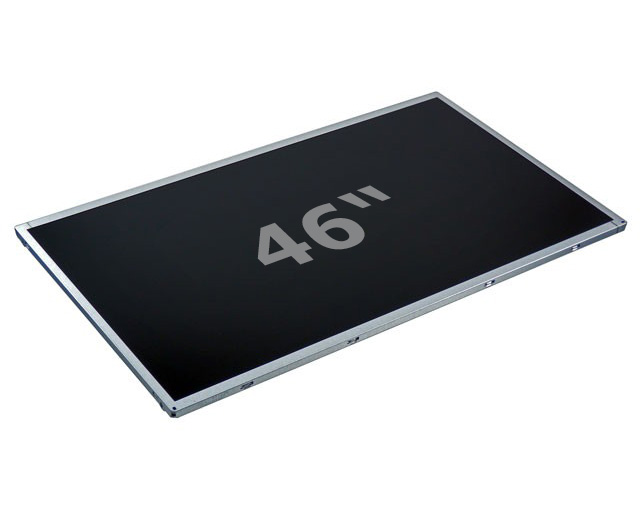

AUO 46"
cat. num.: AUO460
46" TFT-LCD
Full HD 1920 x 1080
500 - 1500 cd/m2
LVDS, 0-50°C
Manufacturer
Availabillity:
on request
Inquiry
Description
| Model | P460HVN02.0 | P460HVN04.3 |
| Screen Diagonal | 46” | 46" |
| Active Area (mm) | 1018.08(H) x 572.67(V) | 1018.08(H) x 572.67(V) |
| Resolution | 1920 x 1080 | 1920 x 1080 |
| White Luminance | 500 cd/m2 | 1500 cd/m2 |
| Contrast Ratio | 4000 : 1 | 4000 : 1 |
| Response Time | 6.5ms (G to G) | 8ms (G to G) |
| Power Consumption | 87.9W | 157.8W |
| Support Color | 1073.7M | 1073.7M |
| Surface Treatment | AG | Low Reflection, QWP |
| Viewing Angle | 178° | 178° |
| Interface | LVDS | LVDS |
| Outline Dimension (mm) | 1044.08 x 598.67 x 9.9 | 1044.08 x 598.67 x 9.9 |
| Weight | 10900g | 11500g |
| Touch | available as option | available as option |
| Operating Temperature | 0°C ~ +50°C | 0°C ~ +50°C |
| Storage Temperature | -20°C ~ +60°C | -20°C ~ +60°C |
| Operation Humidity | 10% ~ 90% RH | 10% ~ 90% RH |
| Storage Humidity | 10% ~ 90% RH | 10% ~ 90% RH |
