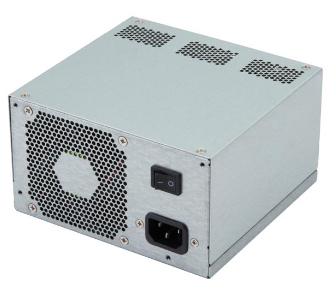

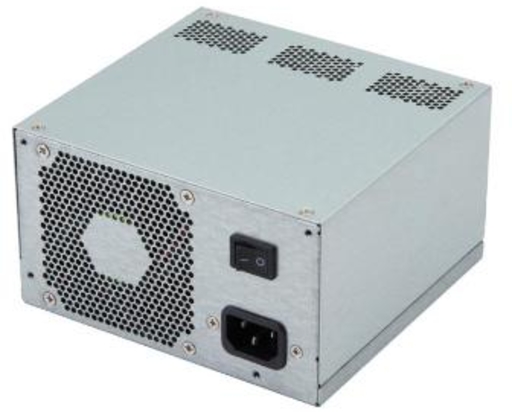

FSP350-70PFL_SK
cat. num.: FSP350-70PFL_SK
Certified CB 62368-1 & CB 60950-1
80 Plus Bronze
Manufacturer
Availabillity:
on request
Inquiry
Description
- Internal 8 cm fan with IEC 62368 standard vents opening
- Low Ripple & Noise
- High Reliability
-
Support OCP, OTP and OVP circuit protection
- Short circuit protection on all outputs
- Resettable power shut down
- 100% Hi-pot tested
- 100% burn-in under high ambient temperature (50°C)
- Over Current Protection
- Over Temperature Protection
- Over Voltage Protection
- Operating temp: 0°C to 50°C
- Size: 140 x 150 x 86mm
Parameters
| Form Factor: | ATX |
| Power Input: | 90-264Vac |
| Size: | 140 x 150 x 86mm |
| Operating temperature: | 0°C to 50°C |
| MTBF: | 100,000 hours of continuous operation at 25°C, Max,-output load |
