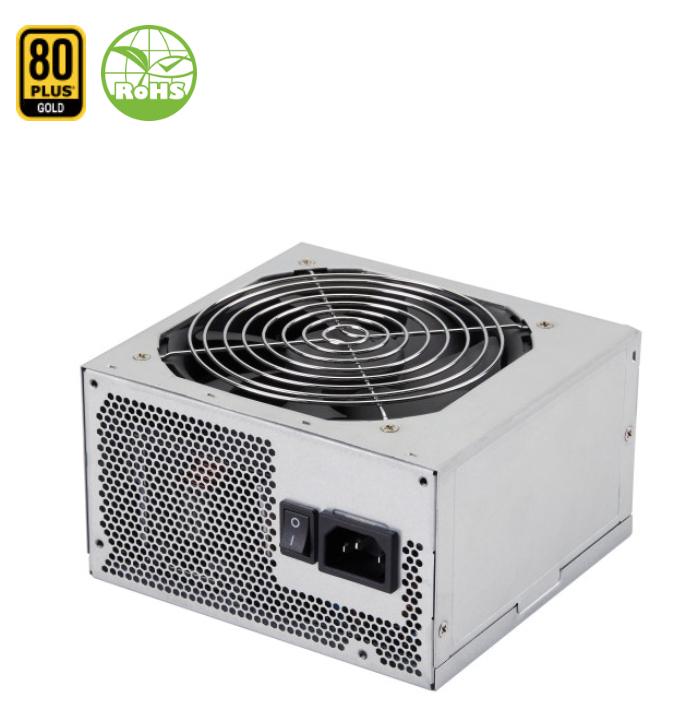

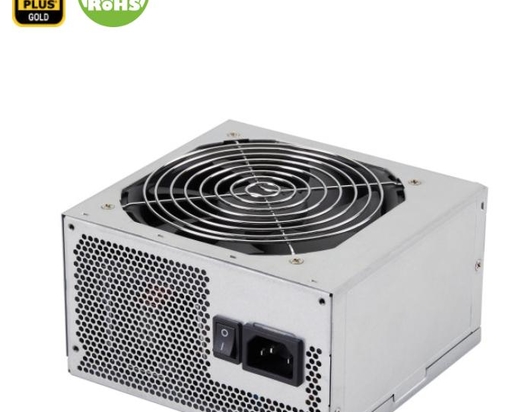

FSP650-50ABA
cat. num.: FSP650-50ABA
- Certified CB 62368-1
- 80 Plus GOLD Certification
Manufacturer
Links
Availabillity:
on request
Inquiry
Description
- Intel Design ATX 12V V1.4
- Low Ripple & Noise
- Over Current Protection
- Over Temperature Protection
- Over Voltage Protection
- Size: 140 x 150 x 86mm
- Operating temperature: 0°C to 40°C
- Input voltage: 90-264Vac
- Hold-up time: 115V / 60Hz: ≥ 16ms; 230V / 50Hz: ≥ 16ms
Parameters
| Form Factor: | ATX |
| Power Input: | 90-264Vac |
| Size: | 140 x 150 x 86mm |
| Operating temperature: | 0°C to 40°C |
| MTBF: | 100,000 hours of continuous operation at 25°C, Max. output load |
