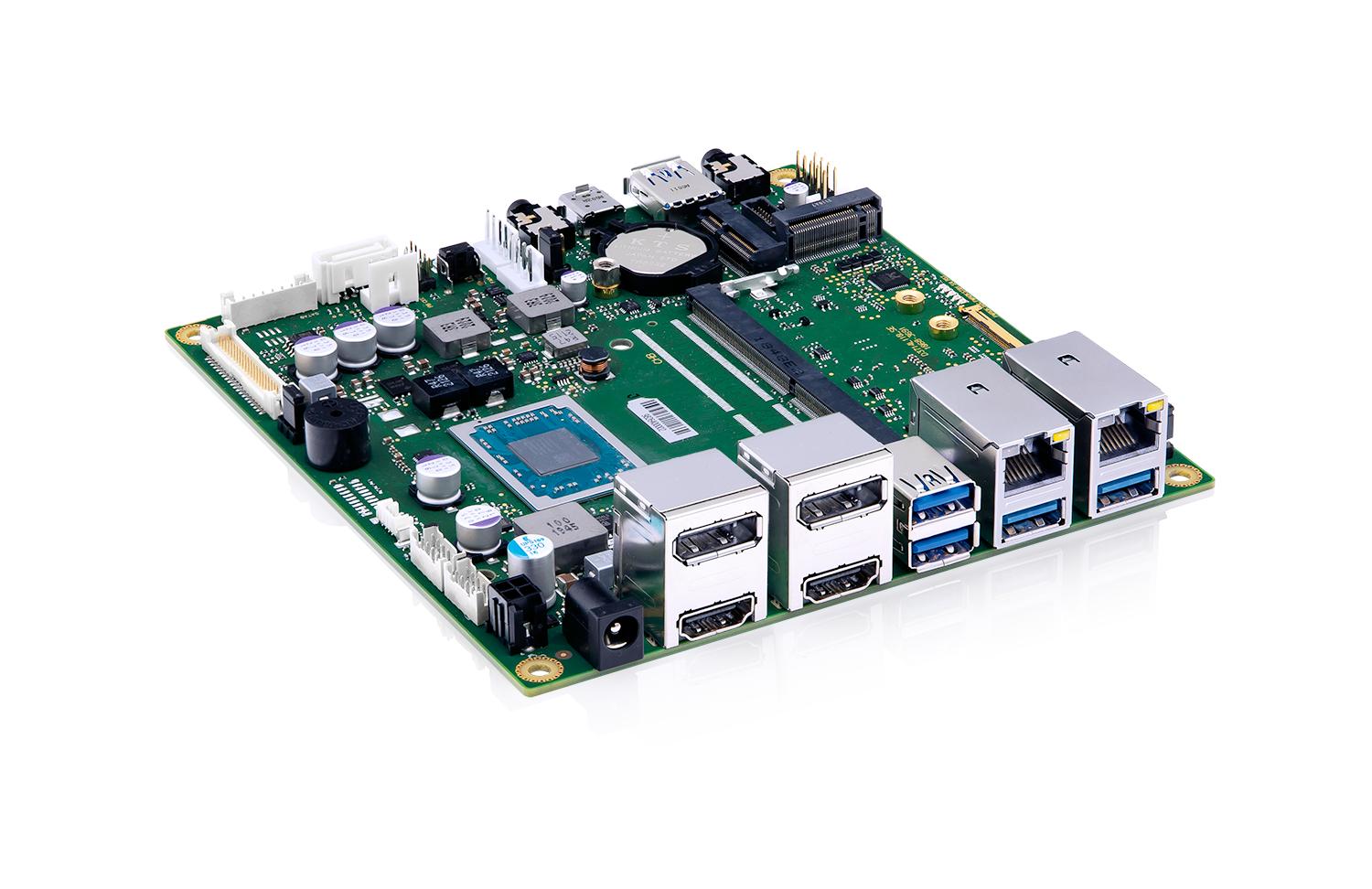

D3714-R2 mSTX Kontron

cat. num.: F5120-V182 New product
D3714-R2 mSTX Kontron
D3714-R2 mSTX Kontron
D3714-R2 mSTX Kontron
  • Share
    • Facebook
    • Twitter
    • Google+
    • Email
  • compare remove

mini-STX, Ryzen R1305G
DDR4 2400,RadeonVega
3xDisplay,2xLAN,2xCOM
Fanless -10-50C

Manufacturer
  • KONTRON
Links
  • D3714_Datasheet
Availabillity: in stock
Inquiry

Description

Processor:

  • AMD Ryzen™ Embedded R1305G Dual-Core 1.5GHz (base) / 2.8GHz (boost), 10W TDP (8W)

Graphics:

  • AMD Radeon™ Vega Graphics @1.0GHz, 3x Compute units
  • up to 3 displays
  • 2x DPP V1.4 incl. DP++ support
  • 1x HDMI V2.0b
  • 1x embedded DP (eDP V1.3; supporting 4K resolutions)
  • 1x Dual-Channel 24bit LVDS

Memory:

  • DDR4 2400 SDRAM
  • 2x SO-DIMM socket, max 2x 16GB

Product Features:

  • Following max. display combinations are supported: 1x HDMI + 1x LVDS + 1x eDP // 1x DPP + 1x HDMI + 1x LVDS // 1x DPP + 1x HDMI + 1x eDP // 2x DPP + 1x HDMI
  • HD Audio onboard (Realtek ALC256)
  • Dual GbE LAN onboard
  • 1x RS232/422/485 (by header); 1x RS232 (by header)
  • GPIO (by header)
  • AMD integrated TPM V2.0 onboard
  • Designed for fanless operation @ -10°C - 50°C (-10°C - 60°C with forced cooling)
  • 3 level HW Watchdog onboard (BIOS POST/BIOS Boot/OS)
  • External/Internal DC-In (DC Jack/4-Pin Micro-Fit) DC Input 12 V or 19-28 V, max. 5 A/65 W (external DC-In), max. 8 A/100 W (internal DC-In)

Parameters

Market: Industrial mainboard
Form Factor: Mini STX
Power Input: DC Power Supply 12-28V
Processor: AMD R1305G Dual-Core 1.5/2.8 GHz (10W TDP)
LAN/USB/COM: 2x RJ45, 4x USB 3.1 Gen1 (1x Type-C), 2x USB 3.1 Gen2, 2x USB 2.0 (opt.), 2x COM (opt.)
Interface: 1x SATA III 6Gb/s, 1x M.2 SSD Key-M (2280/2242/2230), 1x M.2 Key-E (2230)
Size: 140 x 148mm
Operating temperature: -10-60 °C
Memory type: DDR4-2400
DDR: SO-DIMM
